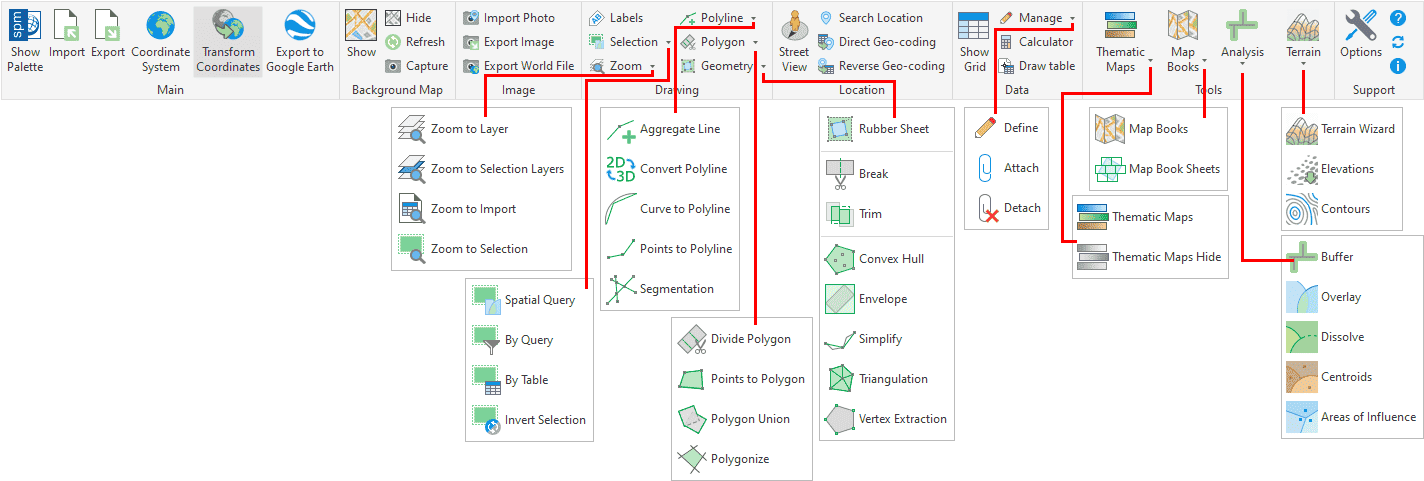

List of AutoCAD commands included in Spatial Manager™ for AutoCAD:

Main commands

• SPM: Show Palette. Opens and/or displays the main application Palette.
• SPMIMPORT: Import. Directly imports features from geospatial files or tables without using the main application Palette.
  • -SPMIMPORT [Task name]: Import (Command Line). Execute Task(s) from the command line, useful in scripts, etc. (“Professional” edition only).
• SPMEXPORT: Export. Exports AutoCAD objects into geospatial files or tables (“Professional” edition only).
  • -SPMEXPORT [Parameters]: Export (Command Line). Exports AutoCAD objects from the command line, useful in scripts, etc. (“Professional” edition only).
• SPMSETCRS: Coordinate system. Sets the Coordinate Reference System (CRS) for the drawing. Includes options to define user CRSs.
• SPMTRANSFORMCRS: Transform Coordinates. Creates a new drawing transforming geometrically objects from the current one between two Coordinate Systems (“Professional” edition only).
• SPMCREATEKML: Export to Google Earth. Exports the current status of the drawing to Google Earth (one click) (“Standard” and “Professional” editions only).
• SPMCLOSE: Close. Closes all application Palettes (Main, Data Grid, Street View, etc.). In addition, it redefines the location and size defaults for when they are reopened.

Background Maps

Available on editionsStandardProfessional

• SPMBGMAPSHOW: Show. Displays the selected image Map in the drawing. Includes tools to manage the user Background Maps.
• SPMBGMAPHIDE: Hide. Hides the Background Map if it is displayed.
• SPMBGMAPREFRESH: Refresh. Regenerates the image of the Background Map, which may be needed under certain graphic situations.
• SPMBGMAPIMAGE: Capture. Creates a AutoCAD raster image corresponding to the display view of the current Background Map (Snapshot).
• SPMBGMAPIMAGEPURGE: Purge. Deletes ‘orphan’ image tiles and performs some other cleaning operations.


Available on editionProfessional

• SPMIMPORTPHOTO: Import Images. Import of geo-referenced raster images and photos.
• SPMEXPORTIMAGE: Export Images. Export of geo-referenced images, geo-reference files and Coordinate System files.
• SPMWORLDFILE: Export Geo-reference Files. Export of images geo-reference and Coordinate System files (World, PRJ, etc.).

Drawing

• SPMLABEL: Objects Labeling. Texts based on objects data and properties.
• Selection
  • SPMSPATIALQUERY: Spatial Query. Advanced objects selection based on geometric and data operations between existing object groups (Intersect, Touches, Within, Contains, Disjoint, Overlaps or Crosses) (“Standard” and “Professional” editions only).
  • SPMSELECTBYQUERY: By Query. Selects objects by a simple or compound query over their data (“Standard” and “Professional” editions only).
  • SPMSELECTBYTABLE: By Table. Selects all the objects attached to a specific data table (“Standard” and “Professional” editions only).
  • SPMSELECTINVERSE: Inverse Selection. Inverts current objects selection.
• Zoom
  • SPMZOOMTOLAYER: Zoom to Layer. Zoom to the objects on the selected layers (by default on the current layer).
  • SPMZOOMTOSELECTIONLAYER: Zoom to Selection Layers. Zoom to the objects on the layers of selected objects.
  • SPMZOOMTOIMPORT: Zoom to Import. Zoom to the objects resulting from the last import process.
  • SPMZOOMTOSELECTION: Zoom to Selection. Zoom to the selected objects.

Geometry Tools

Available on editionProfessional

• Polyline
  • SPMAGGREGREGATELINE: Aggregate line. Connect separate line segments or polylines into continuous polylines, optionally adding segments and grouping by field value.
  • SPMCONVERTPOLYLINE: Convert polyline. Convert polylines between different AutoCAD polyline types.
  • SPMCURVETOPOLYLINE: Curve to polyline. Convert curved objects (arcs, circles, ellipses, splines) into polylines made of straight segments.
  • SPMPOINTSTOPOLYLINE: Points to polyline. Create polylines from point sets, with ordering and grouping options and optional closing.
  • SPMSEGMENTATION: Segmentation. Split polylines or polygons at all intersection points, generating non-overlapping segments.
• Polygon
  • SPMDIVIDEPOLYGON: Divide polygon. Subdivide polygons using equal areas, equidistant strips, or custom area/percentage values.
  • SPMPOINTSTOPOLYGON: Points to polygon. Create closed polygon objects from point sets, with ordering and grouping options.
  • SPMPOLYGONUNION: Polygon union. Merge overlapping or adjacent polygons into unified polygons, removing internal boundaries.
  • SPMPOLYGONIZE: Polygonize. Create polygons from closed polylines or from polyline collections that form closed boundaries.
• Geometry
  • SPMRUBBERSHEET: Rubber Sheet. Elastically deform geometries by matching source/target control point pairs to align data.
  • SPMBREAK: Break. Split objects at intersections with boundary objects.
  • SPMTRIM: Trim. Remove portions of objects inside or outside boundary polygons, keeping only the desired parts.
  • SPMCONVEXHULL: Convex hull. Create the smallest convex polygon that contains all selected objects.
  • SPMENVELOPE: Envelope. Create minimum bounding rectangles (envelopes) around selected objects.
  • SPMSIMPLIFY: Simplify. Reduce polyline complexity by removing vertices while respecting a tolerance.
  • SPMTRIANGULATION: Triangulation. Create a TIN from the vertices of selected objects or from point objects.
  • SPMVERTEX: Vertex extraction. Extract vertices from polylines or polygons and create point objects at each vertex.

Location

Available on editionProfessional

• SPMSTREETVIEW: Street View. Application palette for displaying (and navigating) dynamic Google Street View images on any geo-referenced drawing/map.
• SPMSEARCHLOCATION: Search Location. Search in the drawing for the location of geographical objects (streets, postal addresses, neighborhoods, etc.) based on the text entered.
• SPMGEOCODING_DIRECT: Geo-coding (Direct). Insertion of points in the drawing from postal addresses.
• SPMGEOCODING_REVERSE: Geo-coding (Reverse). Obtaining postal addresses from objects in the drawing.

Data Tables

Available on editionsStandardProfessional

• SPMDATATABLEGRID: Data grid. Opens and displays the ‘Data Grid’ palette (“Professional” edition only).
• SPMDATATABLEDEFINE: Define Table. Defines, restores, modifies, renames or deletes a data table or its fields.
• SPMDATATABLEATTACH: Attach. Attaches one or more objects to a data table.
• SPMDATATABLEDETACH: Detach. Detaches one or more objects from their corresponding attached data table.
• SPMDATACALCULATOR: Fields Calculator. Calculation of new or existing field values using arithmetic, mathematical, date, etc., expressions including constant values and/or values from other fields (“Professional” edition only).
• SPMDATATABLEDRAW: Draw Table. Draws the data table for the selected objects (“Professional” edition only).

Thematic Maps

Available on editionProfessional

• SPMTHEMATICMAP: Define Thematics. Definition and edition of thematic maps according to data field values.
• SPMTHEMATICMAPHIDE: Hide Thematics. Hide thematic viewings.

Map Books

Available on editionProfessional

• SPMMAPBOOK: Map books generation.
• SPMMAPBOOKSHEETS: Definition of sheets for map books.

GIS Analysis

Available on editionProfessional

• SPMBUFFER: Buffers. Buffered polygons around point objects, linear objects or polygon boundaries.
• SPMOVERLAY: Overlays. New objects based on geometric and data operations between existing object groups (Intersect, Union, Erase, Identity, Clip, Paste or Symmetric Difference).
• SPMDISSOLVE: Dissolve. New polygons based on the grouping of other adjacent polygons with some common data.
• SPMCENTROID: Centroids. Polygon Centroids creation by adopting the polygons data, or add Centroids data to the polygons that contain them.
• SPMINFLUENCEAREAS: Areas of Influence. Polygons defined by the set of points closest to each point of a selection of points in the drawing (Voronoi diagrams).

Terrains

Available on editionProfessional

• SPMTERRAIN: Terrain. Create Terrains, Contours and elevation 3D Points. Command options:
  • 1: 3D Points built by accessing Elevation service providers in any selected area.
  • 2: 2D or 3D Contours from selected 3D Points.
  • 3: Terrain wizard. Complete 3D Points, Contours and Terrains functionality.

Support

• SPMOPTIONS: Options. Set of parameters to configure the application (includes also the functionality of SPMUPDATE and SPMABOUT).
• SPMHELP: Help. Shows the application help.
• SPMUPDATE: Updates. Checks if there is a new application release to be downloaded from Internet.
• SPMABOUT: Information. Shows basic information about the application and the installed release.
• _OPTIONS (AutoCAD native command): Options. New “Spatial Manager” tab including the set of parameters to configure the application (same functionality as above).

Note: All the command names are also valid if you replace the prefix SPM with SPATIALMANAGER. For example, SPATIALMANAGERCREATEKML is equivalent to SPMCREATEKML, or SPATIALMANAGER is equivalent to SPM.
