Unified CRS catalog for assigning and transforming coordinates.

Coordinate Systems and Transformation details

As you will see in several ‘Spatial Manager™ for AutoCAD’ windows, there are some links or buttons to access detailed information about a selected Coordinate System or Transformation process.

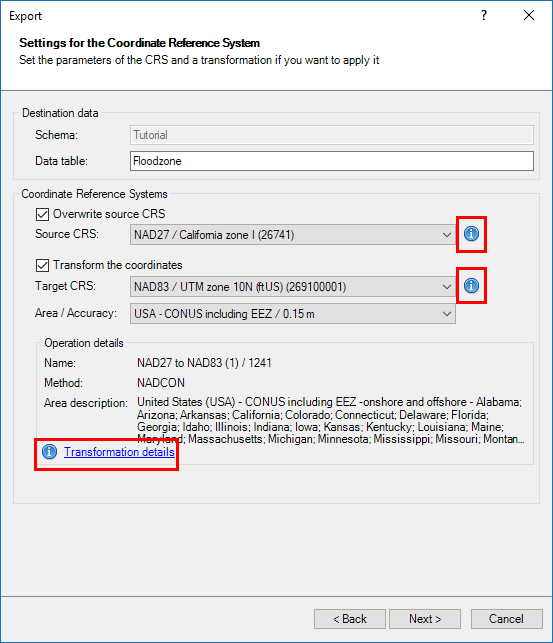

Sample links and buttons to access detailed information
Sample links and buttons to access detailed information

Extended CRS information

  • Datum.
  • Prime Meridian.
  • Ellipsoid.
  • Type.
  • Scope.
  • Projections and parameters.
  • Etc.

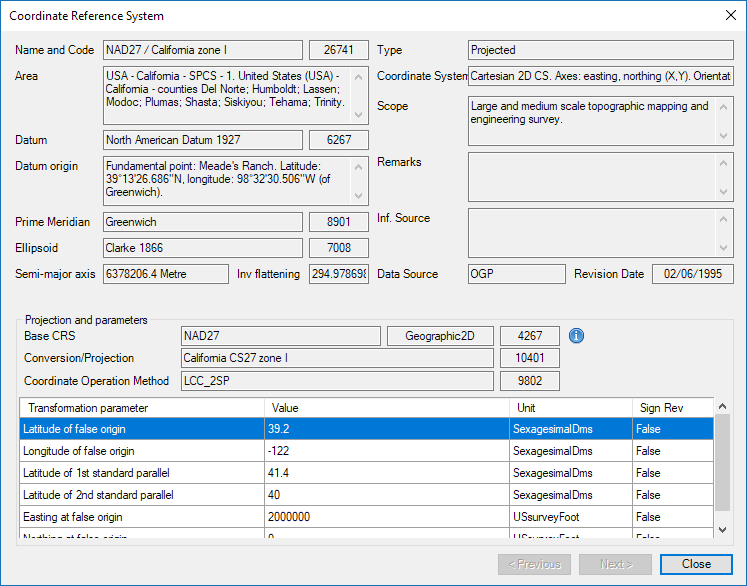

CRS detail window
CRS detail window

Extended Transformation information:

  • Accuracy.
  • Method.
  • Scope.
  • Parameters.
  • Etc.

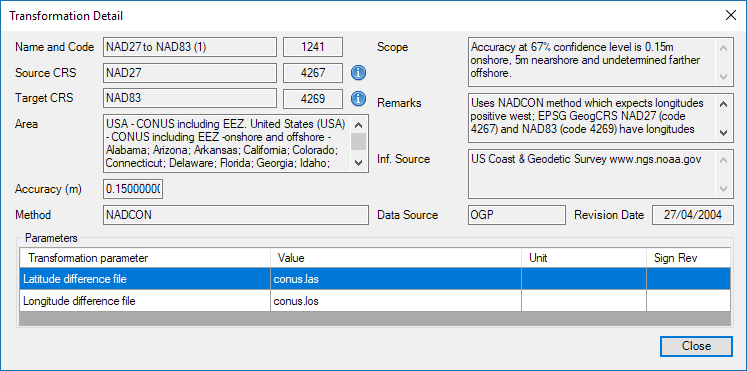

Transformation detail window
Transformation detail window
Disclaimer:
  • Some components shown here (providers, names, window styles, etc.) may differ slightly from those on your computer.
  • Certain features require Internet access. If you experience issues, check with your network administrator about a possible Proxy server. You can configure the Proxy settings in the application options.
  • Some geographic data providers (Geocode, image maps, etc.) may require a user account, which you can set up in the Service Provider API Keys section of the application options.
