Calculate coordinate transformations of the objects in the import and export processes in AutoCAD.

Reference the drawing to use the ‘Background Maps’

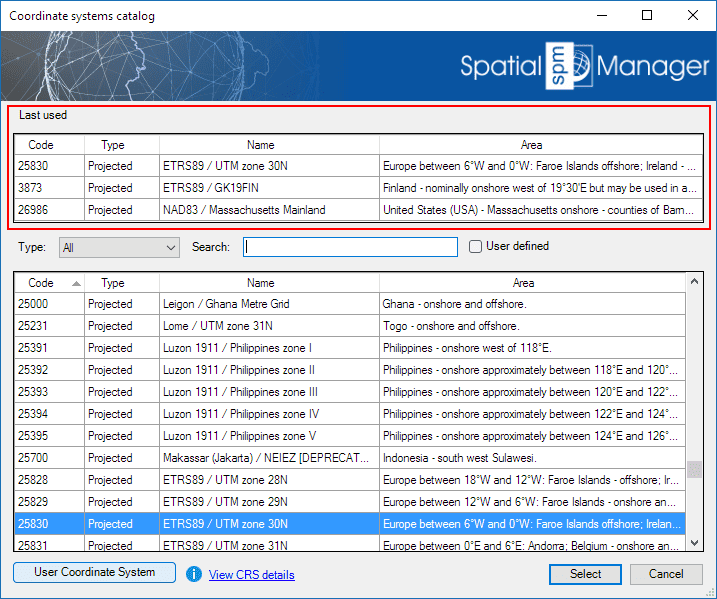

If the drawing is not empty when some commands are executed, it is necessary that the drawing has been assigned a Coordinate Reference System (CRS) in order for the application to “know how to” adjust the image of the ‘Background Map’. If this is not the case, you can assign a CRS to the drawing (and modify it) using the command ‘SPMSETCRS’ of Spatial Manager™ for AutoCAD. By executing this command, you will access the CRS catalog of the application where you can:

• Filter the CRSs by type (Geocentric, Projected, etc.). The type “Projected” will be selected by default because it is the most common choice.
• Choose a CRS by clicking on its row in the table.
• Search CRSs by typing the search criteria in the “Search” box. You can type here as many words as you like separated by blanks. The application will find all the rows including all these words in any column of the table.

• Unassign (undefine) the Coordinate System of the drawing by choosing “Undefined CRS” (EPSG 0).

• Notes:
  • Coordinate Systems and Transformation details.
  • Coordinate Systems objects available in the current version.

Note: Read more about Coordinate Systems, Coordinate Systems Transformation and how to define and select User Coordinate Systems in the Import or Export articles.
