Data
Manage the alphanumeric data attached to the objects, design and edit the structure which will be used to store the data in AutoCAD.
Review the data of the imported Features

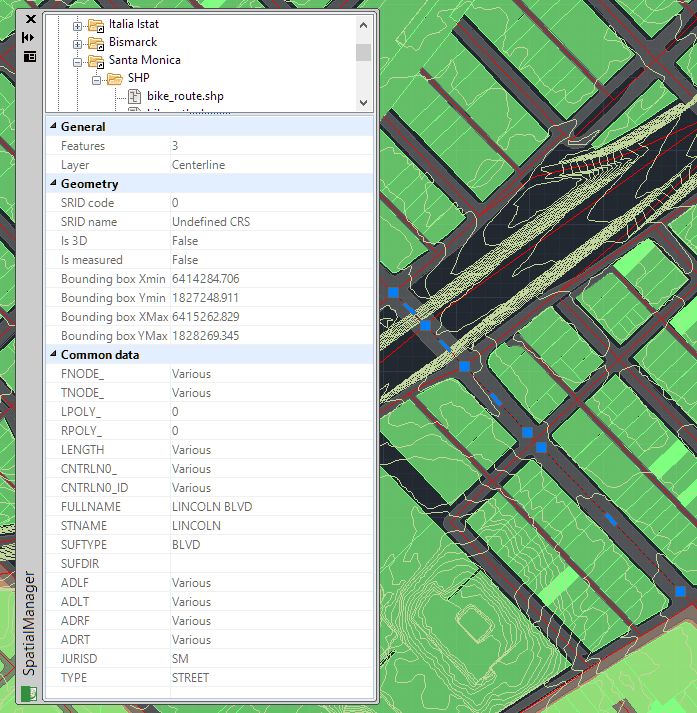

You can see the data of the imported Features in Spatial Manager™ for AutoCAD, because this data is also imported as Extended Entity Data (EED/XDATA) attached to the resulting objects in the drawing. To see it, select an imported object in AutoCAD and its data will be shown in the group “Data” of the “Properties” area in the “SpatialManager” palette.
In addition to the Extended Entity Data (EED/XDATA), you will see some other object data, such as its Layer or its Bounding box, in other groups, such as “General” or “Geometry”.
When selecting multiple objects, you will see their common data here. All the data which is not equal for the selection will be shown as “Various”.
Note: Because of performance considerations, the number of objects selected for which their data is shown in the application palette is limited by the system variable PROPOBJLIMIT.

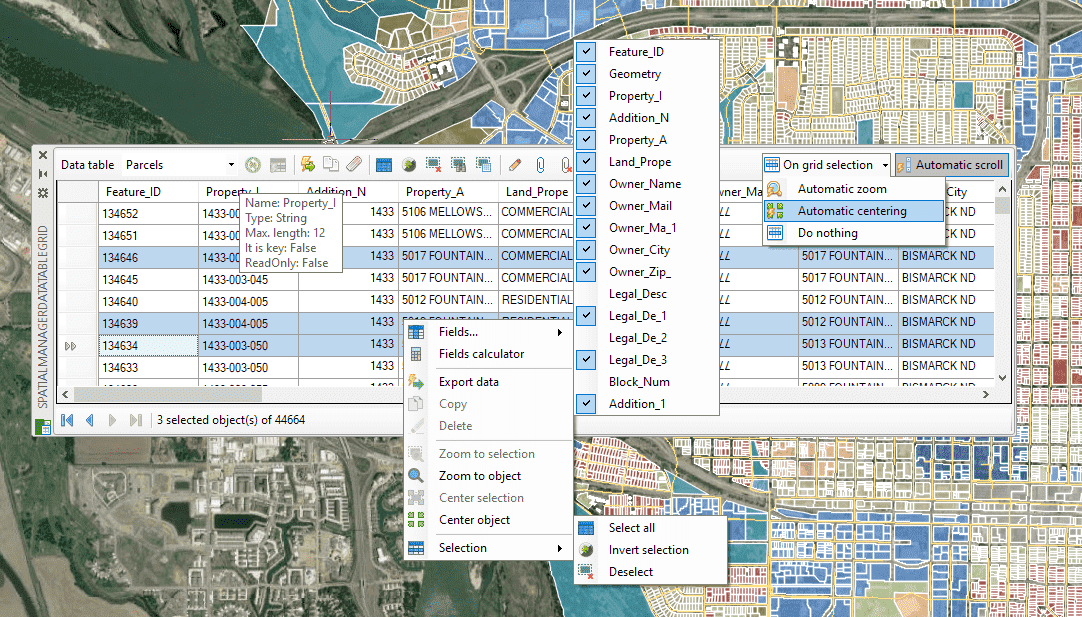

Alternatively, you can use the Spatial Manager™ for AutoCAD ‘Data Grid’ palette (“Professional” edition only) in order to view, edit, select, export, etc. the objects data in a table form.
Learn more about the Data Grid and all its features and functions.
Modify the field values of the objects data

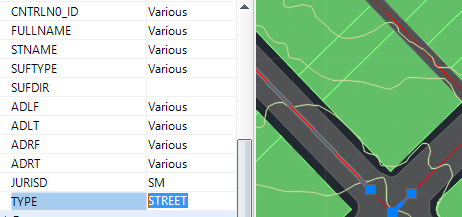

You can directly edit a field value (Extended Entity Data (EED/XDATA) direct data edition) for one or more objects in Spatial Manager™ for AutoCAD by selecting the object(s) in the drawing and typing the new value for this field in the “Properties” area of the “SpatialManager” palette. You can also delete the field content to get a null value in this field. To validate any modification, you need to press Enter or click on a different field.
Note: Because of performance considerations, the number of objects selected for which their data is shown in the application palette is limited by the system variable PROPOBJLIMIT.
As you can read in the previous article, you can use the Spatial Manager™ for AutoCAD ‘Data Grid’ palette (“Professional” edition only) in order to view, edit, select, export, etc. the objects data in a table form.
Learn more about the Data Grid and all its features and functions.
Modify the objects data structure

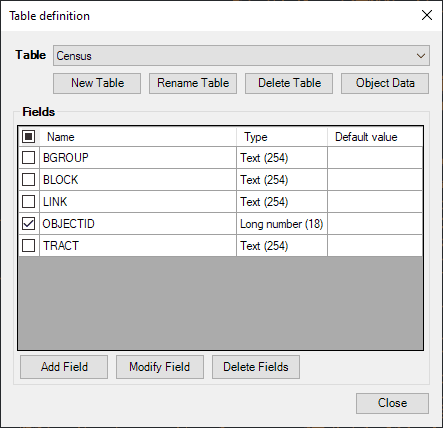

You can add, modify, or delete fields in a table structure as well as create, restore, edit, rename, and delete data tables. Learn more about the Data Structure Management.
