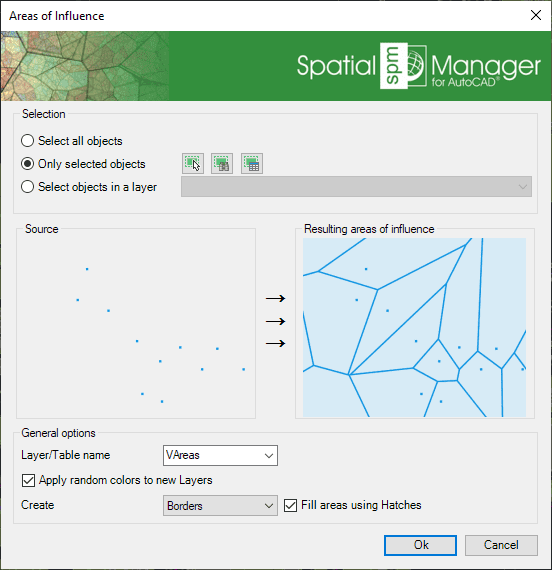

The command ‘SPMINFLUENCEAREAS’ in Spatial Manager™ for AutoCAD allows you to generate polygons defined by the set of points closest to each point of a selection of points in the drawing (Voronoi diagram). Each polygon generated will adopt the same data (if any) as the corresponding point.

Objects selection: Review the selection control.
Table/Layer name: Defines the target Layer and data table name for the new polygons.
- Apply random colors to new Layers.
Create: Areas of Influence objects type, borders, or polygons. The polygons option allows you to select MPolygons as the type of object to use. This option is available on all compatible Autodesk products (even on vanilla, plain, or basic AutoCAD) (AutoCAD 2013 and higher). The MPolygons can be defined by multiple rings, even including holes, as a single AutoCAD object.
- Fill areas using Hatches.
