Generate new Polygons based on the grouping of other adjacent polygons with some common data.

Dissolve

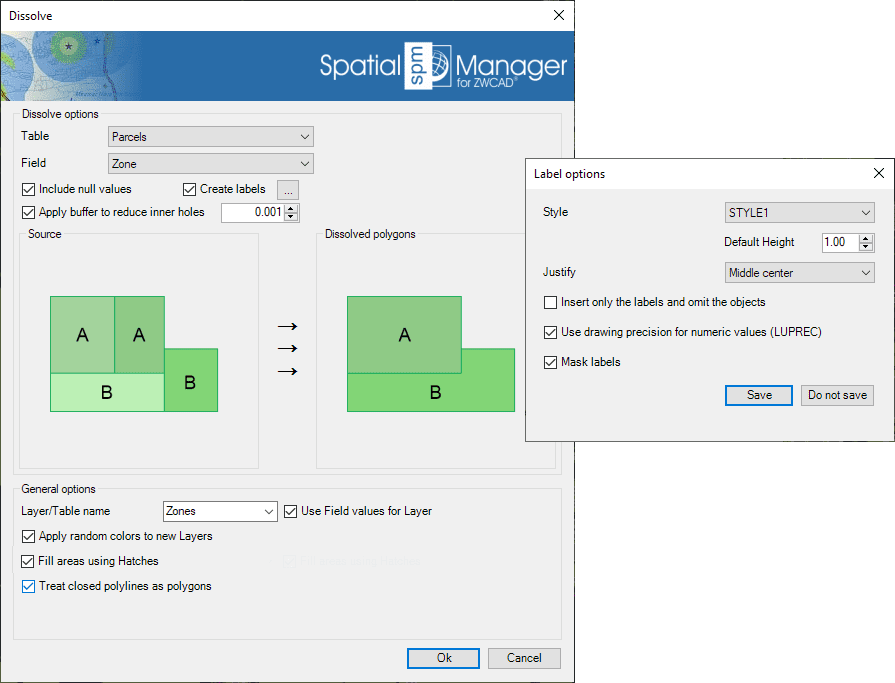

The command ‘SPMDISSOLVE’ in Spatial Manager™ for ZWCAD allows you to generate new polygons based on the grouping of other adjacent polygons with some common data.

• Dissolve options: You can select the common table/field data for dissolving the polygons (even including null data).
• Label options: Define the style, height, and justification of the label text entities.
• Table/Layer name: Defines the target Layer and data table name for the new dissolved polygons.
  • Use field values for Layer.
  • Apply random colors to new Layers.
  • Fill areas using Hatches.
• Treat closed polylines as polygons: When checked (default value), all closed polylines will be considered polygons.

Note: Since this operation can only be performed on polygonal entities, the application will alert the user either if there are non-polygonal entities attached to the selected table (warning) or if there are not enough polygons to process it (cancellation).
